STOLZ

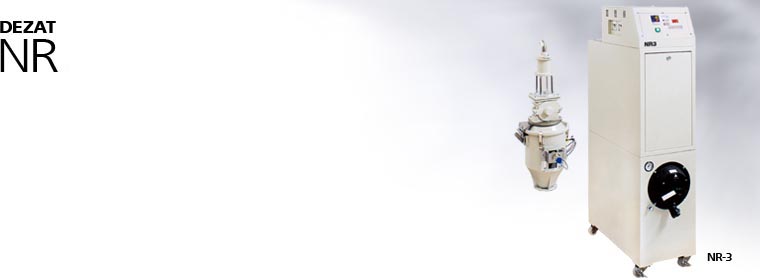

Compact Dehumidifying Dryer

Compact dehumidifying dryer
for molding of small precision products

- Compact version of the popular DEZAT,
  designed to thoroughly dry stock for precision molding of small products
- Applicable with molding machines up to 15 tf class (NR-5)
- High cleanliness inside of drum owing to #400 polished SUS304
- Mixing and drying both possible with weighing/mixing hopper

Weighing/Mixing hopper is option.
Drying capacity is given for PC drying.

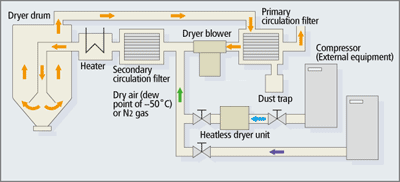

Round System

■ Round System

STOLZ’s Round System supplies and circulates dehumidifying air of –50˚C generated by a heatless dry air unit through a closed system consisting of a completely airtight blower, filter, heater and dryer drum. Because it does not contain complicated processes for recooling or reheating, the system saves on energy and does not require cooling water.
  Moreover, it is maintenance-free because the air used for drying is not recuperated and the heatless dry air unit can withstand long-term use without performance losses caused by special designs.

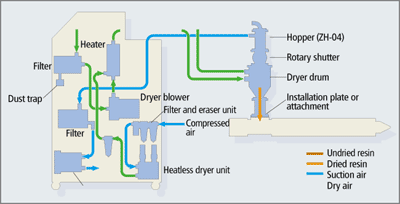

Drying and conveying system

■ Drying and conveying system

The drying drum is installed separate of the dryer on the molding machine. The dryer itself is small enough in size that it can be located anywhere. With less space demanded by peripherals, production of small molded products becomes more efficient.

■ High degree of cleanliness

Beside the drum being made of SUS304 and polished to a #400 finish, a 25 µm fine-mesh filter enhances the clean factor of this compact machine.

Weighing/Mixing hopper GM510
Pellet tank KA-5
Crusher SX-110 with overflow tank
Line filter GF-10-002
Line filter GF-15-0022
Integrated signal tower (Red)

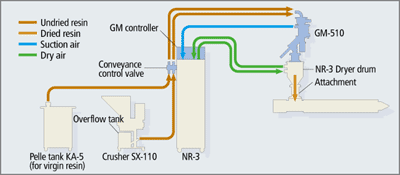

systems that incorporate the GM-510 weighing/mixing hopper.

■ Weighing/mixing hopper  GM-510

The GM-510 is a compact hopper for weighing and mixing virgin and crushed material. The scale/mixer is enclosed in a glass casing so that mixing consistency can be identified at a glance, mixing ratios are easily set from a dedicated controller. The GM-510 can be directly connected to molding machines and dryers. The structure can be readily disassembled and is easy to maintain.

■ Pellet tank  KA-5

This pellet tank is applicable with systems that incorporate the GM-510 weighing/mixing hopper.
Pellet tank  KA/KV/KX

■ SX-110 Crusher and overflow tank

The SX-110 crusher is applicable for systems that incorporate the GM-510 weighing/mixing hopper. The overflow tank must be mounted on the SX-110 when used.
High Grade Low Speed Axial Crusher  SX

■ Line filter GF-10-002,GF-15-002

A line filter can be installed on the molding machine hopper to thoroughly remove dust. Applicable models are GF-10-002 and GF15-002. The GF15-002 incorporates powerful magnets for removing even iron dust.
Line filter  GF/GX

■ Weekly timer

Machines can be started and stopped automatically by simply setting the days of the week and times that the machine should run.

■ Warning lamp

Integrated signal lamp (red) for signaling overloads or temperature errors. Incorporates warning circuitry.

■ Attachments with butterfly shutter

Sets of purpose-specific butterfly valves and SUS attachments are available.
